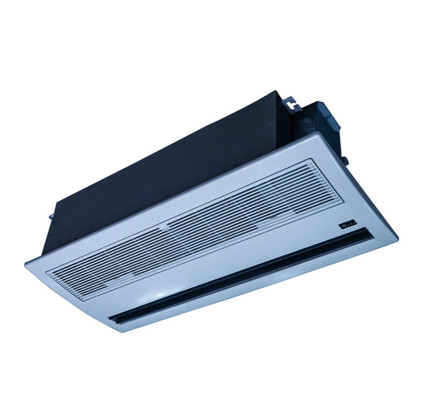

1-Way Cassette Type Fan Coil Unit

All Products

Air to Water Heat Pump (13)

Water to Water Heat Pump (2)

Water Tank (2)

Fan Coils (7)

Hydraulic Indoor Module (1)

Swimming Pool Heat Pump (2)

I'm Online Chat Now

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Air Volume Range:	340m³/h~850m³/h

Features:

Structure: This product combines the benefits of being lightweight, thin, highly resistant to bacteria, and capable of high draining lift. It not only meets cooling and heating demands but also improves indoor air quality while overcoming installation challenges related to drainage.
1-Way Airflow: Designed for easy installation on the side of the ceiling.
Slim Profile: The unit has a compact design, with a thickness of just 235mm, making it suitable for installation in limited ceiling spaces.
Controllers: Comes with a standard remote controller, with an optional wired controller available.
Auto Swing: Offers a wide airflow range for more even air distribution.
Adjustable Horizontal Wind Guide Bar: Can be manually adjusted to control airflow direction.
Quiet Operation: Designed to run quietly, ensuring minimal disturbance

Line-Up

Model(2 tube system)				MFP-34K1M-Q1AA1	MFP-51K1M-Q1AA1	MFP-68K1M-Q1AA1	MFP-85K1M-Q1AA1
Model				MFP-34K1M-Q1A1	MFP-51K1M-Q1A1	MFP-68K1M-Q1A1	MFP-85K1M-Q1A1
Model of panel				MB-SA11A1
Mower supply				220V,50Hz,1Ph
Air volume		H	m3/h	340	510	680	850
		M		280	380	515	660
		L		180	260	340	430
Static pressure			Pa	0	0	0	0
Cooling capacity	TH	H	W	1800	2700	3600	4500
	TH		BTU/h	6142	9212	12283	15354
	SH		W	1300	1970	2700	3185
	SH		BTU/h	4436	6722	9212	10867
	TH	M	W	1500	2460	3000	3715
	TH	M	W	1000	1555	1995	2420
	SH	L	W	1390	2057	2479	2920
	SH	L	W	823	1200	1530	1825
Heating capacity	H		W	2700	4050	5400	6750
	M		W	1950	2770	3935	4900
	L		W	1290	1774	2800	3505
Noise	H	0Pa	dB(A)	37	39	41	43
Power input	H	0Pa	W	37	52	62	76
Water flow volume			m3/h	0.31	0.46	0.62	0.77
Water pressure dropping			kPa	10.8	10.8	20	20
Dimension of water(in & out)connection pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
Dimension of water(in & out)connection pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
Dimension of water drain pipe			mm	￠26	￠26	￠26	￠26
Net dimension	unit		L×W×H mm	971413236	971413236	971413236	971413236
Net dimension	panel		L×W×H mm	104446831
Net weight	unit		kg	22	22	23	23
Net weight	panel		kg	4

Model(4 tube system)				MFP-34K1M4-Q1AA1	M4FP-51K1M4-Q1AA1	M4FP-68K1M4-Q1AA1	M4FP-85K1M4-Q1AA1
Model				MFP-34K1M4-Q1A1	M4FP-51K1M4-Q1A1	M4FP-68K1M4-Q1A1	M4FP-85K1M4-Q1A1
Model of panel				MB-SA11A1
Power supply				220V,50Hz,1Ph
Air volume		H	m3/h	340	510	680	850
		M		280	380	515	660
		L		180	260	340	430
Static pressure			Pa
Cooling capacity	TH	H	W	1350	2030	2700	3380
	TH		BTU/h	4606	6926	9212	11533
	SH		W	1000	1520	2080	2450
	SH		BTU/h	3412	5186	7097	8359
	TH	M	W	1130	1850	2250	2790
	TH	M	W	770	1200	1540	1860
	SH	L	W	1040	1540	1860	2190
	SH	L	W	630	920	1180	1410
Heating capacity	H		W	1080	1620	2160	2700
	M		W	780	1108	1574	1960
	L		W	516	710	1120	1402
Noise	H	0Pa	dB(A)	37	39	41	43
Power input	H	0Pa	W	37	52	62	76
Waterflow volume		Cooling	m3/h	0.23	0.35	0.46	0.58
Waterflow volume		heating	m3/h	0.09	0.14	0.19	0.23
Water pressure dropping		cooling	kPa	7	7.3	13	14.6
Water pressure dropping		heating	kPa	4.2	4.4	7.5	8.7
Dimension of water(in & out)connection pipe		cooling/heating		ZG1/2"	ZG1/2"	ZG1/2"	ZG1/2"
Dimension of water(in & out)connection pipe		cooling/heating		ZG1/2"	ZG1/2"	ZG1/2"	ZG1/2"
Coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
Dimension of water drain pipe			mm	￠26	￠26	￠26	￠26
Net dimension	unit		L×W×H mm	971413236	971413236	971413236	971413236
Net dimension	panel		L×W×H mm	104446831
Net weight	unit		kg	22	22	23	23
Net weight	panel		kg	4
