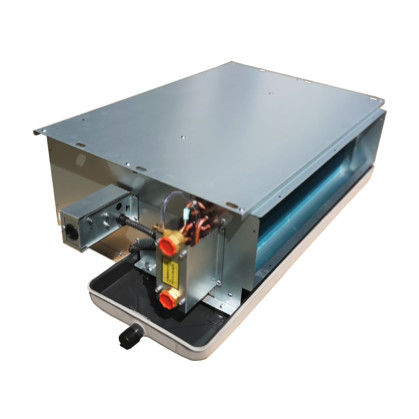

Ceiling Conceal Ducted Type Fan Coil Unit ( B style)

Ceiling Conceal Ducted Type Fan Coil Unit ( B style)
Ceiling Conceal Ducted Type Fan Coil Unit ( B style)

Large Image :  Ceiling Conceal Ducted Type Fan Coil Unit ( B style)

Product Details:
Place of Origin: China
Brand Name: Deakonet
Certification: CE
Model Number: 1.9-12.6kW Models
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 15-20 Working Days
Payment Terms: L/C,T/T
Supply Ability: 30,000 units/Year
Contact Now
Detailed Product Description
Air Volume Range: 340m³/h~2380m³/h

Features

  • High-Quality Fan for Optimal Performance
    Each fan installed in the fan coil unit undergoes precision dynamic balance adjustments to ensure smooth operation, low noise, and stable performance.

  • Durable and Rust-Resistant Construction
    Constructed with high-grade tensile steel and coated with a protective plastic spray, the surface is smooth, glossy, and rust-proof. Utilizing a one-piece pressed forming technique, the tray is seamless and compact, preventing secondary leaks and ensuring superior insulation.

  • Premium Copper Tubing for Efficient Heat Transfer
    Made of high-quality purple copper, the tubing offers excellent thermal conductivity, superior strength, and high-pressure resistance—ideal for high-rise buildings. The fin spacing is optimized through computer simulation and experimental feedback to maximize heat exchange efficiency, improve airflow, and ensure high-performance heating and cooling.

  • Flexible Stainless Steel Hose (Optional)
    A stainless steel hose can be installed for inlet and outlet water connections, enhancing durability and ease of installation.

  • Seamless Integration with Building Automation Systems
    The unit is compatible with Modbus and proprietary supervisory systems based on the Modbus protocol, allowing easy integration into intelligent building management systems.


Ceiling Conceal Ducted Type Fan Coil Unit ( B style) 0

Ceiling Conceal Ducted Type Fan Coil Unit ( B style) 1

Ceiling Conceal Ducted Type Fan Coil Unit ( B style) 2

Line-Up

PERFORMANCE OF DUCTED TYPE FAN COIL(2 TUBE, B style)
model(2 tube system) MFP-34WA-B MFP-51WA-B MFP-68WA-B MFP-85WA-B MFP-102WA-B MFP-136WA-B MFP-170WA-B MFP-204WA-B MFP-238WA-B
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850 1020 1360 1700 2040 2380
M 270 380 515 660 765 1040 1280 1550 1800
L 190 260 340 430 530 710 860 1050 1280
static pressure Pa 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 1900 2800 3800 4700 5700 7200 9000 10800 12600
BTU/h 6483 9553 12965 16036 19449 24566 30708 36850 42991
SH W 1416 2086 2831 3502 4247 5364 6705 8046 9387
BTU/h 4831 7117 9659 11949 14491 18302 22877 27453 32028
TH M W 1539 2268 3078 3807 4617 5832 7290 8748 10206
W 1216 1792 2432 3008 3647 4607 5759 6911 8063
SH L W 1197 1764 2394 2961 3591 4536 5670 6804 7938
W 982 1446 1963 2428 2945 3720 4649 5579 6509
heating capacity H W 2800 4300 5700 7100 8500 10800 13500 16200 18900
M W 2156 3311 4389 5467 6545 8316 10395 12474 14553
L W 1694 2602 3449 4296 5143 6534 8168 9801 11435
noise high speed 12Pa dB(A) 37 39 41 43 45 47 48 50 52
30Pa 39 41 43 45 48 49 50 52 54
50Pa 42 44 46 47 49 50 52 54 56
power input 12Pa W 37 52 62 76 96 134 152 189 228
30Pa 44 59 72 87 108 156 174 212 253
50Pa 49 66 84 100 118 174 210 250 300
waterflow volume
m3/h 0.32 0.48 0.65 0.8 0.98 1.23 1.54 1.85 2.16
water pressure dropping kPa 7 15 18 23 28 30 22 30 36
dimension of water(in & out)connection pipe
ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"

ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ZG3/4"
dimension without air return box mm(L*W*H) 624×465×235 814×465×235 864×465×235 944×465×235 1044×465×235 1424×465×235 1474×465×235 1674×465×235 1824×465×235
air return from side 624×510×235 814×510×235 864×510×235 944×510×235 1044×510×235 1424×510×235 1474×510×235 1674×510×235 1824×510×235
air return from bottom 624×492×252 814×492×252 864×492×252 944×492×252 1044×492×252 1424×492×252 1474×492×252 1674×492×252 1824×492×252
weight
kg 11 13 14 16 17 26 29 32 34


PERFORMANCE OF DUCTED TYPE FAN COIL(4 TUBE,B style)
model(4 tube system) MFP-34WA4-B MFP-51WA4-B MFP-68WA4-B MFP-85WA4-B MFP-102WA4-B MFP-136WA4-B MFP-170WA4-B MFP-204WA4-B MFP-238WA4-B
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850 1020 1360 1700 2040 2380
M 270 380 515 660 765 1040 1280 1550 1800
L 190 260 340 430 530 710 860 1050 1280
static pressure Pa 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 1900 2800 3800 4700 5700 7200 9000 10800 12600
BTU/h 6483 9553 12965 16036 19449 24566 30708 36850 42991
SH W 1416 2086 2831 3502 4247 5364 6705 8046 9387
BTU/h 4831 7117 9659 11949 14491 18302 22877 27453 32028
TH M W 1539 2268 3078 3807 4617 5832 7290 8748 10206
W 1216 1792 2432 3008 3647 4607 5759 6911 8063
SH L W 1197 1764 2394 2961 3591 4536 5670 6804 7938
W 982 1446 1963 2428 2945 3720 4649 5579 6509
heating capacity H W 1100 1700 2300 2800 3400 4320 5400 6480 7560
M W 847 1309 1771 2156 2618 3326 4158 4990 5821
L W 666 1029 1392 1694 2057 2614 3267 3920 4574
noise high speed 12Pa dB(A) 39 41 43 45 48 49 50 52 54
30Pa 42 44 46 47 49 50 52 54 56
power input 12Pa W 44 59 72 87 108 156 174 212 253
30Pa 49 66 84 100 118 174 210 250 300
waterflow volume cool m3/h 0.32 0.48 0.65 0.8 0.98 1.23 1.54 1.85 2.16
heat
0.09 0.15 0.2 0.24 0.29 0.37 0.46 0.56 0.65
water pressure dropping cool kPa 7 15 18 23 28 30 22 30 36
heat
2.8 6 7.2 9.2 11.2 12 8.8 12 14.4
dimension of water(in & out)connection pipe
ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"

ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ZG3/4"
dimension without air return box mm(L*W*H) 624×465×235 814×465×235 864×465×235 944×465×235 1044×465×235 1424×465×235 1474×465×235 1674×465×235 1824×465×235
air return from bottom 624×510×235 814×510×235 864×510×235 944×510×235 1044×510×235 1424×510×235 1474×510×235 1674×510×235 1824×510×235
air return from side 624×492×252 814×492×252 864×492×252 944×492×252 1044×492×252 1424×492×252 1474×492×252 1674×492×252 1824×492×252
weight
kg 12 14 15 17 18 28 31 34 36
