R290 Inverter Air Source Heat Pump

Name: R290 Inverter Air Source Heat Pump
Brand: FOSHAN JUYANG NEW ENERGY CO LTD
SKU: 6-45kW
Availability: InStock

Product Details

Place of Origin: China

Brand Name: DEAKONET

Certification: CE, ERP, UL

Model Number: 6-45kW

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Max Outlet Water Temp:	75C	Minimum Operating Ambient Temperature:	-30C
Function:	Heating/Cooling/Hot Water	WiFi-APP Control:	Standard
4G- Module (IoT):	Optional	Compressor:	Inverter
Condenser:	Plate Heat Exchanger (Standard)	Water Pump:	Inverter(Optional Buil In)
Fan Motor:	DC (Standard)	Back Up Heater:	3/6/9kW (Optional Built In )
Expansion Vessel:	Optional Built In	PV Drive Module:	Optional Built In

Max Outlet Water Temp:	75C
Minimum Operating Ambient Temperature:	-30C
Function:	Heating/Cooling/Hot Water
WiFi-APP Control:	Standard
4G- Module (IoT):	Optional
Compressor:	Inverter
Condenser:	Plate Heat Exchanger (Standard)
Water Pump:	Inverter(Optional Buil In)
Fan Motor:	DC (Standard)
Back Up Heater:	3/6/9kW (Optional Built In )
Expansion Vessel:	Optional Built In
PV Drive Module:	Optional Built In

Description

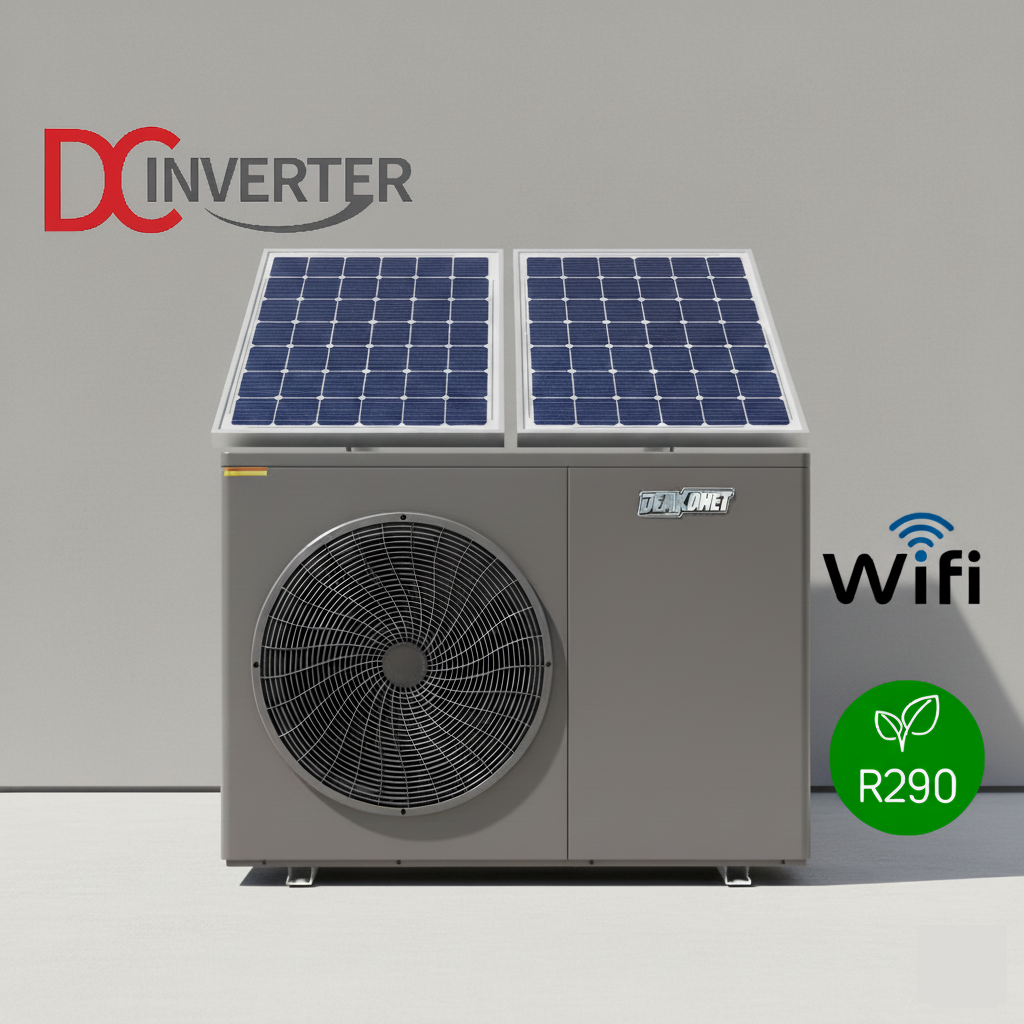

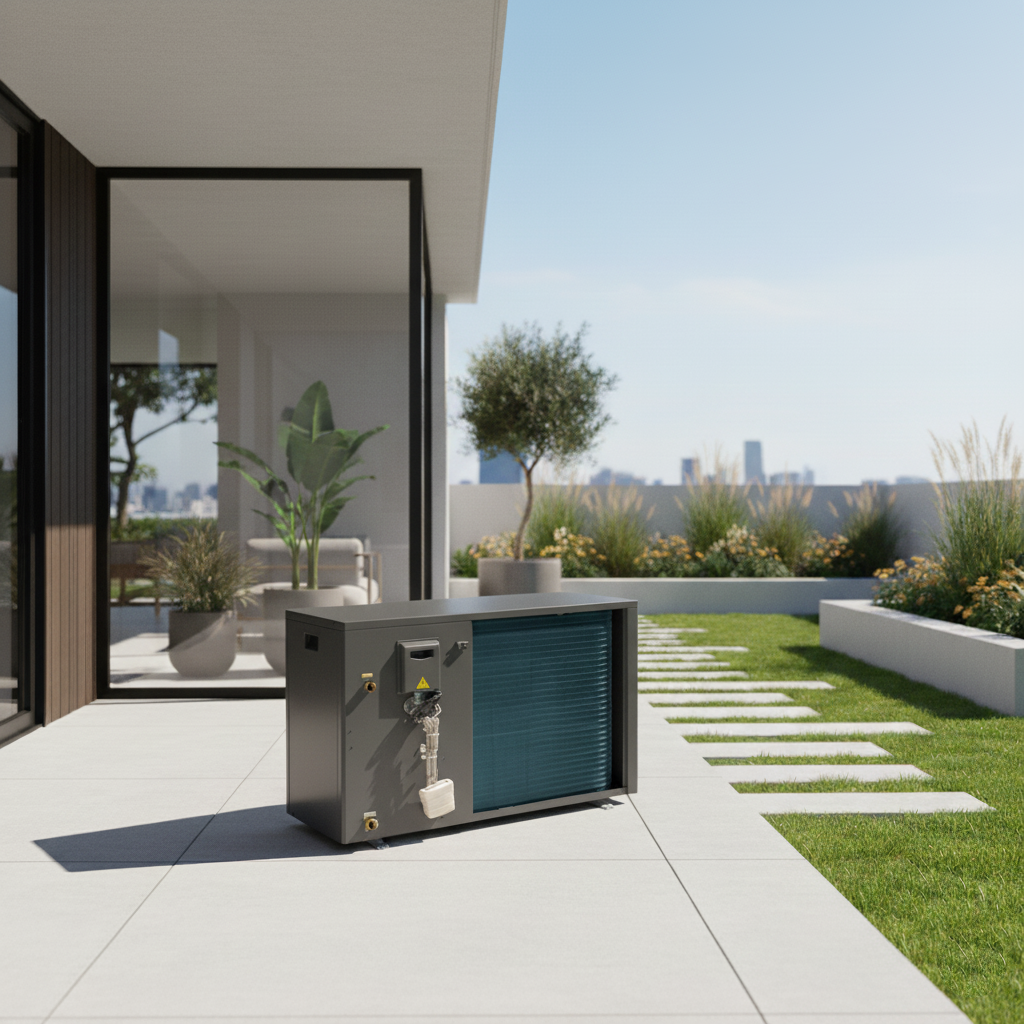

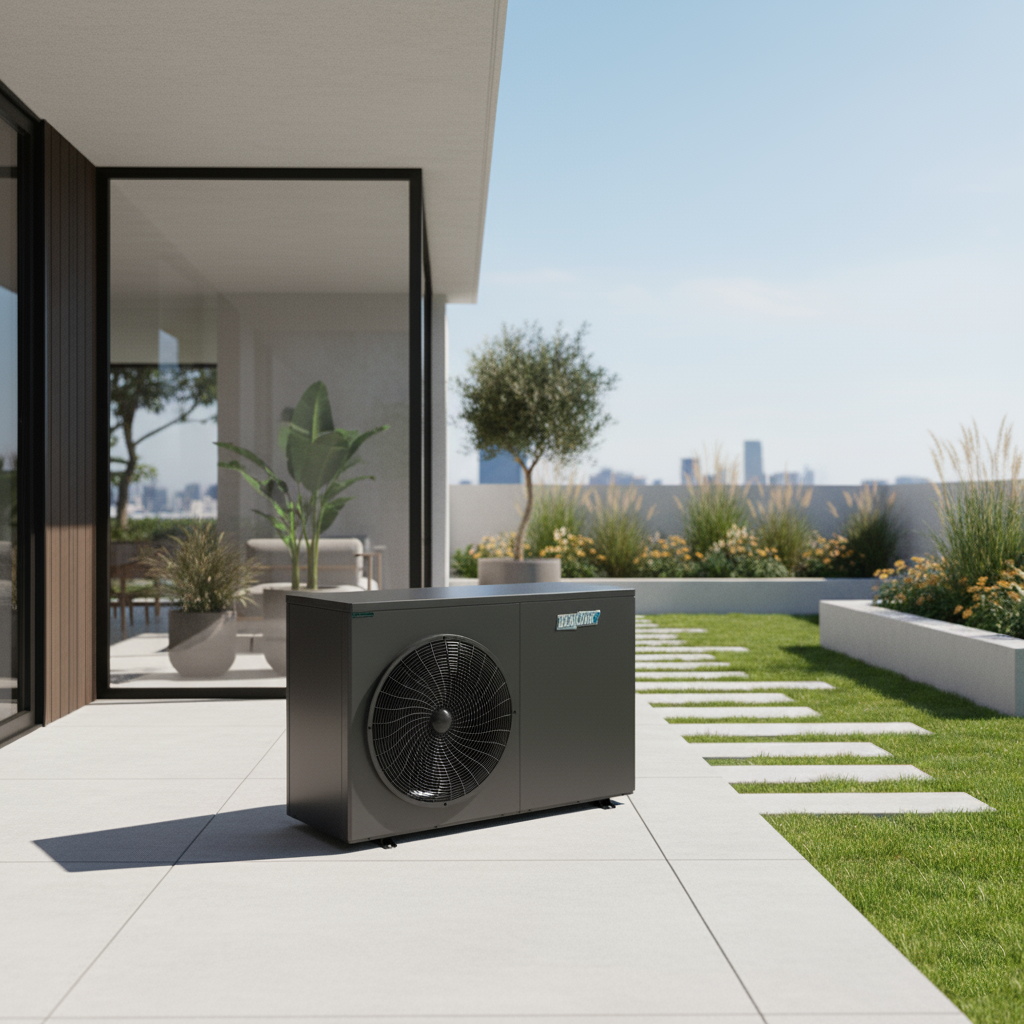

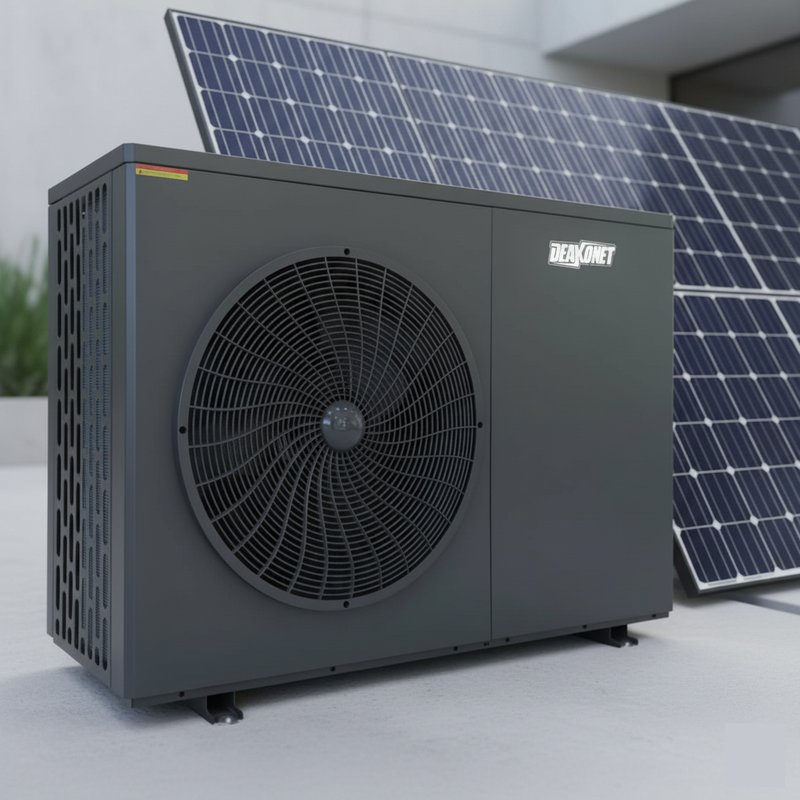

R290 Inverter Air Source Heat Pump

DEAKONET ® EU Registered Trademark

A4/A5 PRO Series R290 Inverter Heat Pump

Domestic Hot Water · Space Heating · Space Cooling ｜ Full DC Inverter Platform ｜ 6–45 kW

🌡️ Max. Outlet 75°C 🔌 230V / 380V 🔇 From 48 dB(A) 🌿 R290 · GWP 3 ⭐ A+++ Rated

Designed for residential and light commercial applications, the A4/A5 PRO Series delivers heating, cooling, and domestic hot water in one compact R290 inverter platform. With full DC inverter technology and weather-compensated control, it maintains stable comfort while minimizing energy waste.

🔁 Auto-Changeover Automatically switches between heating, cooling, and DHW based on room and tank temperatures.

☀️ PV Direct Drive (A5 PRO) Direct DC input from solar panels (60–520V) without external inverters.

Key Features

Full DC Inverter — Compressor, fan, and pump continuously match load demand, reducing start-stop cycling and temperature fluctuation.
75°C High-Temperature Output — Sustained 65°C output at -15°C ambient; compatible with radiators and underfloor heating.
Wide Operating Range — Heating from -30°C to 45°C ambient, suitable for cold climates.
Weather-Compensated Control — Automatically adjusts target water temperature based on outdoor conditions.
Delta-T Pump Control — Inverter water pump adjusts flow to match real heating/cooling load.
Quiet Operation — Sound pressure as low as 48 dB(A), ideal for residential installations.

Smart Control Options

📱 Wi-Fi / APP (Standard) 📶 4G IoT (Optional, 3-year data plan) 🔌 Modbus / RS485 (Optional, BMS integration) 🛋 Wired/Wireless Thermostat

Dual-band 2.4GHz / 5GHz Wi-Fi supports stable smart control.
Built-in 4G modules with pre-installed SIM card for plug-and-play monitoring without household WiFi.
IoT platform provides project overview, real-time data, alarms, and historical records.

A5 PRO Exclusive Features

⚡ SG Ready (Smart Grid Ready)

Normal Mode — Standard operation
Blocked Mode — Avoids peak grid hours
Forced Mode — Uses excess renewable power

☀️ PV Direct Drive

Direct DC connection to PV panels
Single-phase: DC 60–350V / 200–350V
Three-phase: DC 200–520V
No external inverter required

Premium Components

Component	Specification	Customer Benefit
Compressor	Famous brand inverter rotary compressor with EVI	High efficiency, wide range, low vibration, strong low-temperature heating
Condenser	SWEP stainless steel R290-compatible brazed plate heat exchanger	High heat transfer, compact footprint, corrosion resistance
Evaporator	Hydrophilic aluminum fin + inner-grooved copper tube	Improved heat absorption, frost resistance, anti-corrosion
Fan + Drive	Brushless DC fan motor + sine wave IPM drive	Quiet variable-speed airflow, smoother operation

Optional upgrades: inverter water pump, MPPT module, expansion tank, backup heater, built-in 4G module.

Model Overview

230V Single-Phase Series

Model	A4PRO-15S	A4PRO-18S	A4PRO-06	A4PRO-09	A4PRO-12
Rated Heating (kW)	16	18	6	9	12
Rated Cooling (kW)	12	15	5	7.5	9
Rated Heating COP	4.71	4.39	4.41	4.43	4.41

380V Three-Phase Series

Model	A4PRO-15T	A4PRO-18T	A4PRO-22T	A4PRO-30T	A4PRO-45T
Rated Heating (kW)	16	18	22	30	45
Rated Cooling (kW)	12	15	18	27	40.5
Rated Heating COP	4.71	4.39	4.37	4.38	4.37

Full Technical Parameters

A4 PRO Series

Parameter	A4PRO-06	A4PRO-09	A4PRO-12	A4PRO-15S	A4PRO-18S	A4PRO-15T	A4PRO-18T	A4PRO-22T	A4PRO-30T	A4PRO-45T
Power Supply	230V/1Ph		230V/1Ph		230V/1Ph	380V/3Ph
Rated Heating (kW)	6.0	9.0	12.0	16.0	18.0	16.0	18.0	22.0	30.0	45.0
Rated Heating COP	4.41	4.43	4.41	4.71	4.39	4.71	4.39	4.37	4.38	4.37
Rated Cooling (kW)	5.0	7.5	9.0	12.0	15.0	12.0	15.0	18.0	27.0	40.5
Cooling EER	2.84	2.88	2.81	2.86	2.83	2.86	2.83	2.81	2.82	2.83
DHW Heating (kW)	7.5	11.2	15.0	18.5	22.5	18.5	22.5	28.0	33.5	49.6
Hot Water Output (L/h)	161	240	321	396	482	396	482	600	718	1063
R290 Charge (kg)	0.6	0.8	1.0	1.3	1.5	1.3	1.5	1.8	2.2	2.5
Noise dB(A)	48	48	49	54	56	54	56	57	58	58
Net Weight (kg)	76	86	93	120	127	120	127	150	176	210
Dimensions (mm)	1060×410×825		1230×490×890	1080×420×1390		1080×420×1390		1080×420×1390	1280×480×1590
