Product Details:
Payment & Shipping Terms:
|
COP: | 5.4 | Compressor: | Panasonic Inverter Compressor |
---|---|---|---|
Refrigerant: | R32 | Condenser/Evaporator: | Stainless Plate Heat Exchanger |
Circulation Pump: | Optional Built-in Inverter Water Pump | Control: | WIFI +APP +4.3/5 Inch Touch Screen Panel |
Function: | Hot Water+Room Heating/Cooling | Max Outlet Water Temp: | 60℃ |
Applicable Ambient: | -25~43℃ |
What is a Water to Water (Water Source ) Heat Pump?
A water-to-water (water source) heat pump is a type of heat pump that transfers heat between a water source and a water-based heating or cooling system. Unlike air-source heat pumps that use air as the heat exchange medium, a water-to-water heat pump uses water, which can provide a more stable and efficient temperature source.

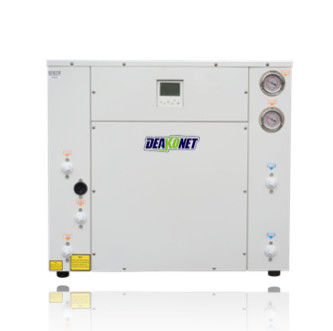

Features of the G1 Pro Series Water-to-Water Heat Pump
Line-Up
Model |
G1PRO-05 |
G1PRO-12 |
G1PRO-18 |
G1PRO-24 |
G1PRO-36 |
|
Power supply type |
P/V/Hz |
1/200-240/50-60 |
3/380-415/50-60 |
|||
Heating capacity range |
kW |
1.5-5.8 |
3.6-13.8 |
5.4-20.7 |
7.2-27.6 |
10.8-41.4 |
Input power range |
kW |
0.3-1.3 |
0.8-3.1 |
1.2-4.6 |
1.6-6.1 |
2.4-9.2 |
Performance at 10°C source side, with water inlet/outlet temperatures of 30/35°C on the user side. |
Heating capacity KW |
5 |
12 |
18 |
24 |
36 |
Input power KW |
0.9 |
2.2 |
3.3 |
4.5 |
6.8 |
|
COP |
5.4 |
5.4 |
5.4 |
5.3 |
5.3 |
|
Operating current |
A |
4.0 |
9.7 |
14.5 |
6.9 |
10.3 |
Maximum outlet water temperature |
℃ |
60 |
||||
Compressor |
Type |
Rotory |
||||
Condenser |
Type |
Plate heat exchanger |
||||
Evaporator |
Type |
Plate heat exchanger |
||||
Circulating pump for source side (Optional) |
Water flow (m3/h) |
1.4 |
3.4 |
5.2 |
6.9 |
10.3 |
Pump head (m) |
10 |
12 |
15 |
20 |
25 |
|
Circulating pump for user side (Optional) |
Water flow (m3/h) |
0.9 |
2.1 |
3.1 |
4.1 |
6.2 |
Pump head (m) |
8 |
10 |
12 |
12 |
12 |
|
Water connection size |
Inch |
1 |
1.2 |
1.5 |
1.5 |
1.5 |
Refrigerant |
Type |
R32 |
||||
Max exhaust pressure |
Mpa |
4.2 |
||||
Dimensions |
Length (mm) |
600 |
600 |
600 |
650 |
650 |
Width (mm) |
500 |
500 |
500 |
550 |
550 |
|
Height(mm) |
750 |
750 |
750 |
750 |
750 |
|
Waterproof |
Grade |
IPX4 |
||||
Anti electric shock |
Grade |
I |
||||
Operating noise |
db(A) |
47 |
47 |
49 |
52 |
53 |
