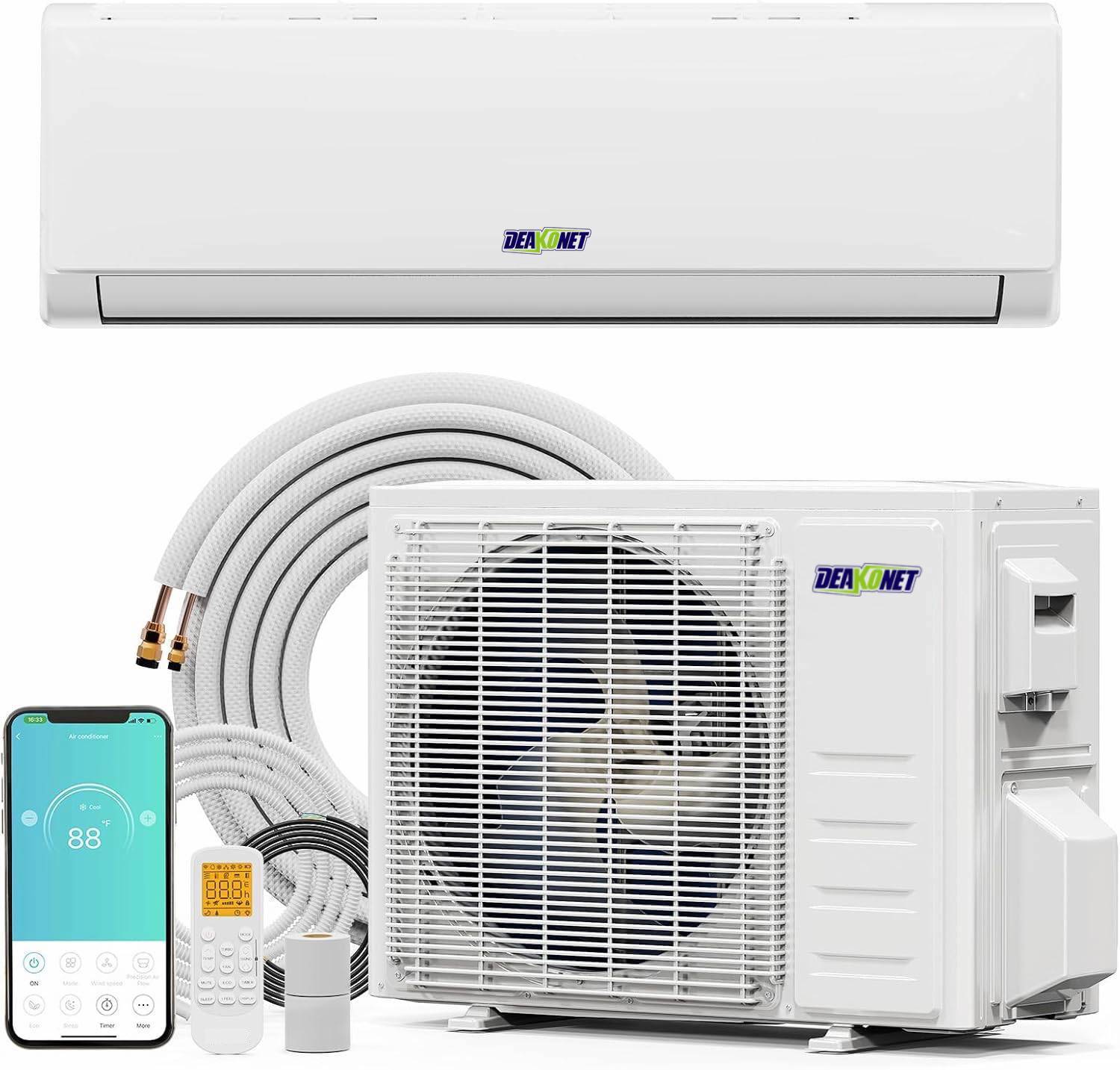

DEAKONET Split Inverter Air Conditioner Manufactured by Juyang New Energy

DEAKONET Split Inverter Air Conditioners represent the perfect fusion of innovation, efficiency, and reliability. Engineered by Juyang New Energy—a leader in sustainable HVAC solutions—these air conditioners are designed to deliver superior cooling and heating performance while significantly reducing energy consumption.

Inverter Technology: Adjusts compressor speed to maintain desired temperature with minimal energy waste, ensuring quiet and efficient operation.

Smart Control: WiFi-enabled app control allows users to manage settings remotely for ultimate convenience.

Energy-Saving Excellence: Achieves outstanding energy efficiency with advanced inverter technology and optimized thermal management systems, significantly reducing electricity costs while maintaining superior performance.

All-Climate Performance: Provides efficient cooling and heating even in extreme temperatures.

Ultra-Low Noise Operation: Advanced sound-dampening technology and optimized airflow design enable exceptionally quiet performance, with noise levels as low as 28 dB, ensuring a peaceful and undisturbed indoor environment.

Comprehensive Model Range: Offers multiple capacity models to efficiently accommodate rooms of various sizes, from small bedrooms to large commercial spaces, ensuring optimal climate control for every need.

Model Name		SAS09B	SAS12B	SAS18B	SAS24B	SAS28B
Power Supply	V/Ph/Hz	220-240/1/50-60
Cooling Capacity	Btu/h	9000	12000	18000	24000	28000
Cooling Input	W	800	1300	1700	2000	2700
Cooling Current	A	3.7	5.6	7.2	8.52	12.5
Heating Capacity	Btu/h	9400	12600	18000	24000	28000
Heating Input	W	850	1300	1680	1940	2800
Heating Current	A	3.9	5.6	7.4	8.5	13
Seasonal Cooling (Pdesign)	kW	2.4	2.8	4.6	6.2	7
SEER	W/W	6.1	6.1	6.1	6.6	6.3
Heating Energy Efficiency Class	kW	2.0	2.2	2.2	4.1	5.0
SCOP	W/W	4.0	4.0	4.0	4.0	4.0
Heating Energy Efficiency Class (Average)	A+	A+
Indoor Unit Air Flow Volume	m³/h	520/440/230/150	550/470/250/160	850/720/610/520	1200/1150/900/750	1200/1150/900/750
Indoor Unit Sound Pressure Level	dB(A)	40/37/32/25	42/39/35/30	44/40/37/34	51/45/40/35	51/45/40/35
Indoor Unit Dimension (W×H×D)	mm	821×283×200	821×283×200	1003×310×222	1109×331×250	1109×331×250
Indoor Unit Carton Box Dimension (W×H×D)	mm	895×281×350	895×281×350	1077×304×380	1178×344×414	1178×344×414
Indoor Unit Net Weight	kg	9	9	13.5	16.5	16.5
Indoor Unit Gross Weight	kg	11	11	16	19.5	19.5
Outdoor Unit Sound Pressure Level	dB(A)	50	53	55	51	52
Outdoor Unit Dimension (W×H×D)	mm	830×540×325	830×540×325	890×598×372	960×700×396	990×790×426
Outdoor Unit Carton Box Dimension (W×H×D)	mm	876×585×363	876×585×363	938×647×409	1008×742×452	1054×832×479
Outdoor Unit Net Weight	kg	23	23.5	33	42.5	51
Outdoor Unit Gross Weight	kg	25.5	26	37	46	55
Refrigerant Type		R410A	R410A	R410A	R410A	R410A
Refrigerant Charge	kg	0.78	0.8	1.5	1.63	1.9
Liquid Pipe Outer Diameter	mm	φ6.35	φ6.35	φ6.35	φ6.35	φ6.35
Gas Pipe Outer Diameter	mm	φ9.52	φ9.52	φ12.7	φ15.88	φ15.88
20' GP Loading Quantity	units	112	112	90	56	47
40' GP Loading Quantity	units	234	234	189	123	99
40' HQ Loading Quantity	units	260	260	218	140	118
