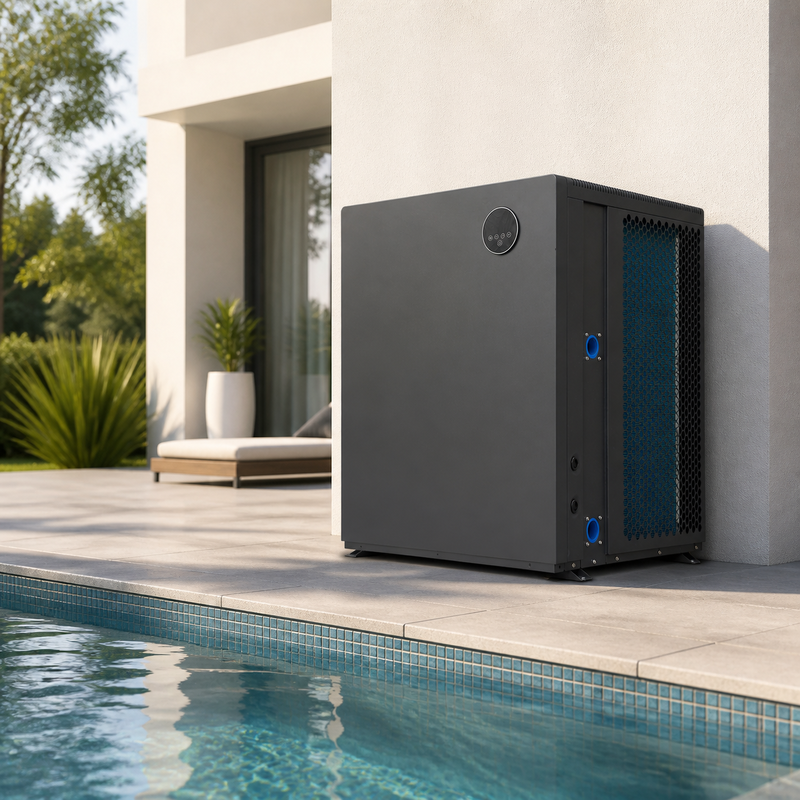

R32 Inverter Swimming Pool Heat Pump

DEAKONET ® EU Registered Trademark

R32 Inverter Swimming Pool Heat Pump Top Blow Series

Efficient Comfort · Intelligent Control · Built for Residential & Commercial Pools

🌡️ Ambient -15°C to 43°C

💧 Water 8°C to 45°C

🔌 230V / 380V

🌿 R32 · GWP 675

📱 Wi-Fi APP Control

Full DC inverter technology coordinates compressor and fan speed to match real-time heat demand—improving temperature stability, efficiency, and acoustic comfort. Available from 9 kW to 45 kW, the Top Blow Series covers residential pools, hotels, resorts, and light commercial installations.

Key Features

🌿 R32 RefrigerantGWP 675 · Zero ODP

⚡ 10–100% ModulationStepless capacity control

🔄 Heating / CoolingAuto changeover

📱 APP ControlWi-Fi connected

🔇 Low NoiseFrom 47 dB(A)

🛡️ Titanium Heat ExchangerCorrosion resistant

Technical Specifications

Model	P2PRO-09	P2PRO-14	P2PRO-16	P2PRO-23	P2PRO-27	P2PRO-32	P2PRO-36	P2PRO-45
Heating Capacity (kW)	9	14	16	23	27	32	36	45
Power Supply	230V/1Ph	230V/1Ph	380V/3Ph	380V/3Ph	380V/3Ph	380V/3Ph	380V/3Ph	380V/3Ph
Input Power (kW)	0.18–2.00	0.30–3.00	0.40–3.50	0.60–5.00	0.70–5.80	0.85–6.80	1.00–7.80	1.20–9.50
COP Range	8.5–5.20	8.5–5.10	8.5–5.00	8.5–5.00	8.5–4.90	8.0–4.80	8.0–4.70	8.0–4.60
Water Flow (m³/h)	5	8	9	13	15	18	20	25
Water Connection	DN50	DN50	DN50	DN50	DN50	DN30	DN50	DN50
Noise @10m	<47 dB(A)	<49 dB(A)	<50 dB(A)	<52 dB(A)	<53 dB(A)	<55 dB(A)	<56 dB(A)	<59 dB(A)
Net Weight (kg)	55	70	75	88	95	105	115	130

Rated condition: ambient 27°C / 80% RH; water 27°C.

Dimensions & Refrigerant Charge

Model	Dimensions W×D×H	R290 Charge
P2PRO-09 / 14 / 16	700 × 700 × 850 mm	0.8 / 1.2 / 1.4 kg
P2PRO-23 / 27	750 × 750 × 900 mm	1.8 / 2.2 kg
P2PRO-32 / 36	780 × 780 × 950 mm	2.2 / 2.5 kg
P2PRO-45	810 × 810 × 975 mm	2.8 kg

Installation clearance: allow at least 500 mm service space. Roof installations require a platform at least 1 m wide with suitable waterproofing.

Performance Data by Operating Condition

Format: Heating Capacity (kW) / COP Range. Performance varies by operating condition, water flow, piping, and installation quality.

Model	Rated (27/27)	Low Temp. (15/26)	Cold (7/26)
P2PRO-09	9.0 / 8.5–5.20	7.5 / 8.0–5.0	5.5 / 6.5–3.8
P2PRO-14	14.0 / 8.5–5.10	12.0 / 8.0–4.8	8.5 / 6.5–3.8
P2PRO-16	16.0 / 8.5–5.00	13.5 / 8.0–4.8	9.5 / 6.5–3.8
P2PRO-23	23.0 / 8.5–5.00	19.5 / 8.0–4.8	14.0 / 6.5–3.8
P2PRO-27	27.0 / 8.5–4.90	23.0 / 8.0–4.7	16.5 / 6.5–3.8
P2PRO-32	32.0 / 8.0–4.80	27.0 / 8.0–4.6	19.0 / 6.5–3.8
P2PRO-36	36.0 / 8.0–4.70	30.0 / 8.0–4.5	21.5 / 6.5–3.8
P2PRO-45	45.0 / 8.0–4.60	38.0 / 8.0–4.5	27.0 / 6.5–3.8

Core Components

🔧 Key Components

DC Inverter Compressor — 10–100% modulation · 10–120 Hz · soft start · low vibration
Titanium Heat Exchanger — Corrosion resistant for chlorinated and chemically treated pool water
DC Fan Motor — High efficiency · low noise
Anti-Corrosion Structure — Hydrophilic coated fins + ABS or epoxy-coated galvanized casing

📱 Connected Control

Remote Operation — Power, temperature, and mode control
Real-Time Monitoring — Water temperatures, status, and energy data
Smart Scheduling — 7×24-hour timer settings
Fault Alerts — Automatic alarm notifications
Multi-Unit Management — Centralized control for commercial sites
Data Logging — History for energy analysis and maintenance

Application Guide

Application	Recommended Model	Why It Fits
Residential pool ≤50 m³	9–14 kW	Single-phase · compact · quiet
Large residential 50–100 m³	16–23 kW	High efficiency · flexible installation
Hotel or resort pool	27–36 kW	High output · cascade capable
Indoor constant-temperature pool	27–45 kW	Compatible with dehumidification systems
Water park / fitness center	36–45 kW (cascaded)	Commercial-duty multi-unit operation
