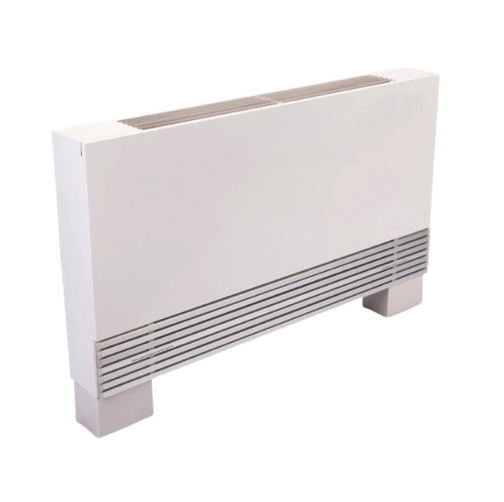

Ultra Thin Vertical Type Fan Coil Unit (Floor Mounted)

Detail Information

Place of Origin:

China

Certification:

Air Volume Range:

200m³/h~600m³/h

System Type:

2 Pipe System Unit, Thermostat Build-in, BLDC Motor Is Optional

Packaging Details:

Carton

Supply Ability:

50,000

Product Description

Features:

Ultra-Thin Design: The body width is only 130mm, offering a sleek and compact profile.
Modern Industrial Style: Crafted with exquisite manufacturing technology and an elegant surface, it complements contemporary decor.
Cross Flow Fan & Optimized Pipeline Design: Delivers strong airflow and smooth, quiet operation.
Damped Wind Guide Strip: Allows for manual adjustment of the wind direction, ensuring personalized comfort.
Hidden Intelligent LED Temperature Controller: Elegant in appearance, user-friendly, and easy to operate.
Cold Wind Protection System: Prevents cold air from blowing out when the water temperature in the pipe is too low.
Reversible Water Pipe and Electric Control Box: Can be installed on either side, simplifying installation and reducing inventory reliance.
Removable Side Metal Plate: Facilitates easier pipe connections during installation.
Easy-to-Change Filter: The filter can be easily replaced for hassle-free maintenance.
Optional 2-Way and 3-Way Valves: These options help reduce installation costs.
Flexible Installation: The product can be installed either as a floor-standing unit with legs or wall-mounted without legs.
Optional Panasonic DC Brushless Motor: An upgrade option for enhanced performance and energy efficiency.

Dimensions:

Ultra Thin Vertical Type Fan Coil Unit (Floor Mounted) 0

Line-Up

Model (AC Motor)		MFP-20CM	MFP-30CM	MFP-40CM	MFP-50CM	MFP-60CM
Power supply		220-240V,50Hz,1Ph
Air volume(High speed)	m3/h	200	300	400	500	600
Air volume(Medium speed)	m3/h	150	220	300	380	450
Air volume(Low speed)	m3/h	110	160	230	290	340
Cooling capacity(High speed)	W	1000	1800	2400	3000	3600
Cooling capacity(Mid)	W	800	1440	1920	2400	2880
Cooling capacity(Low)	W	650	1170	1560	1950	2340
Heating capacity(1)High speed	W	1600	2900	3850	4800	5750
Heating capacity(1)Mid		1280	2320	3080	3840	4600
Heating capacity(1)Low		830	1510	2000	2500	2990
Heating capacity(2)	W	2050	3700	4950	6150	7350
Heating capacity(3)	W	1250	2250	2950	3700	4400
Noise	dB(A)	38	39	40	41	42
Power input	W	15	18	20	26	32
Waterflow volume	m3/h	0.17	0.31	0.41	0.51	0.61
Pressure dropping	kPa	4	6	8	10	12
Water tube connection		R1/2"
Coil	Type	high efficient copper pipe to wear Hydrophilic aluminum coil
Maximum working pressure	Mpa	1.6
Condensation pipe(diameter)	mm	￠21
Net dimension(LWH)	mm	700130681	900130681	1100130681	1300130681	1500130681

Model (DC Motor)		DC-MFP-20CM	DC-MFP-30CM	DC-MFP-40CM	DC-MFP-50CM	DC-MFP-60CM
Power supply		220V,50Hz,1Ph
Air volume(Max. )	m3/h	200	300	400	500	600
Air volume(Min. )	m3/h	80	120	160	200	240
Cooling capacity(High speed)	W	1000	1800	2400	3000	3600
Cooling capacity(Low)	W	550	1000	1300	1650	2000
Heating capacity(1)Max.	W	1600	2900	3850	4800	5750
Heating capacity(1)Min.		830	1510	2000	2500	2990
Heating capacity(2)	W	2050	3700	4950	6150	7350
Heating capacity(3)	W	1250	2250	2950	3700	4400
Noise	dB(A)	18~38	19~39	20~40	21~41	22~42
Power input	W	10	11	12	15	16
Waterflow volume	m3/h	0.17	0.31	0.41	0.51	0.61
Pressure dropping	kPa	4	6	8	10	12
Water tube connection		R1/2"
Coil	Type	high efficient copper pipe to wear Hydrophilic aluminum coil
Maximum working pressure	Mpa	1.6
Condensation pipe(diameter)	mm	￠21
Net dimension(LWH)	mm	700130681	900130681	1100130681	1300130681	1500130681
